IoT Wall-mounted Smart Socket Panel Waterproof Outdoor Remote
Control LoRaWAN Communication

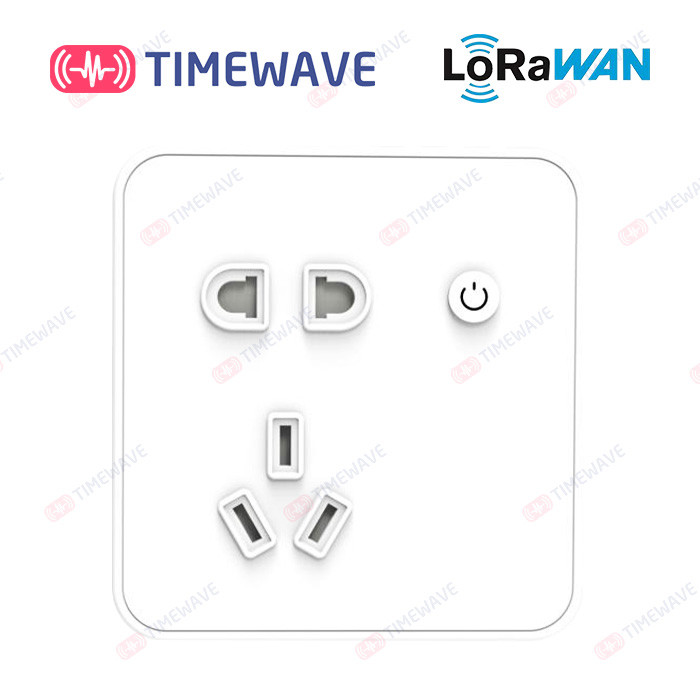

TW2397-CZ is a simple and nice-looking 86 wall-mounted smart socket
panel. The product integrates
power on/off control and elec statistics functions. Realize
intelligent management of elec appliances and
scientific use of electricity. TW2397-CZ has rich power on/off
control modes.. In addition to local key control,
it supports wireless LoRaWAN networking communication to realize
remote control. It can be combined with
the LoRaWAN gateway and the "TimeWave Cloud" energy supervision
platform to realize scene control by
linking with other intelligent devices. Suitable for installation
into wall.It can be widely used in smart home
office, campus and other application scenarios.
1. Flexible control mode: Support local key, delayed task, scene
linkage, remote control and other on/off
control modes.
2. Multicast function: Support grouping management of sockets and
batch control of power on/off of
sockets.
3. Power statistics: Collect the power consumption of equipment and
monitor the energy consumption of
equipment.
4. Overload protection: Real-time monitoring of electrical
parameters. Be able to make early warning and
decision for abnormal conditions.
5. Long communication distance: The communication distance can
reach 15 kilometers in an empty
environment.
6. Easy to use: support cellphone NFC fast configuration.
7. Good compatibility: Compatible with standard LoRaWAN gateway and
third-party net server platform.
Support for ad hoc networks.
8. Management integration: It can quickly connect with the LoRaWAN
gateway and the "TimeWave Cloud"
energy supervision platform. No additional configuration is
required.
- Specifications & technical parameters
Elec parameters | Socket specification | National standard 5-hole 10A/3-hole 16A (optional), with safety door |
Input voltage | 100~250VAC,50~60Hz |
Rated load | 10A/2500W；16A/4000W |
Software function | Power on/off control | Support remote control/scene linkage/delayed task/local control,
etc |
Multicast function | Support 4 multicast groups |
Elec parameter collection | Voltage (V), current (mA), power (W), power factor (%), power consumption (kWh) |
Protection mechanism | Overcurrent protection/alarm |
Intelligent locking | Support locking local switch button |
Automatic recovery | Support to keep the last working state after restart |
Wireless parameters | Communication protocol | Standard LoRaWAN protocol |
Operating frequency | CN470,RU864,IN865EU868,US/AU915,KR920,AS923_1/2/3/4, Custom Channels |
Transmit frequency | 19dBm |
Receiving sensitivity | -137dBm@300bps |
Net access/working mode | OTAA/ABPClassC |
Interface & Configuration
| Switch button | One |
Indicator | One. Green |
Configuration method | NFC (Mobile App) |
Working temperature | -20℃ ~60℃ |
Working humidity | 10%~90% (no condensation) |
Protection grade | IP20 |
Size | 86×90×42mm |
Material | PC+ABS |
Installation method | Wall-mounted |
