    IP30 Environmental Monitoring Sensor IOT LoRa Electric Fire Monitor ISO/IEC 9001

    Ask Lasest Price
    Brand Name : TimeWave
    Model Number : Electrical fire monitor(LoRa)
    Certification : ISO/IEC 20000-1, ISO/IEC 27001,ISO/IEC 9001
    Price : EXW US$ 20-80/set
    Payment Terms : T/T, L/C
    Supply Ability : 2000 set/week
    Delivery Time : 3-5 weeks after receive the payment
    • Product Details
    • Company Profile

    IP30 Environmental Monitoring Sensor IOT LoRa Electric Fire Monitor ISO/IEC 9001

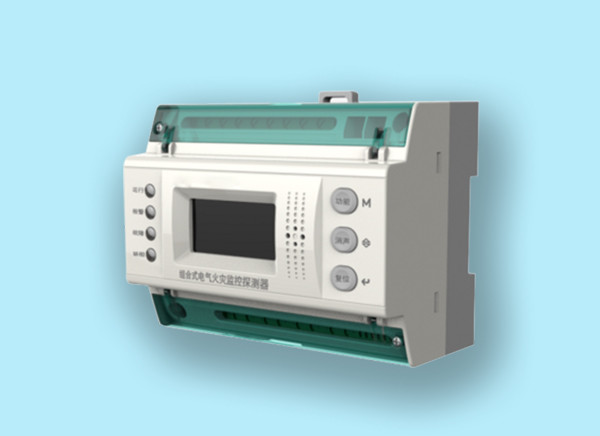

    TIMEWAVE Smart IOT Electrical fire monitor(LoRa)


    IP30 Environmental Monitoring Sensor IOT LoRa Electric Fire Monitor ISO/IEC 9001


    Product Overview
    The combined electrical fire monitoring detector is based on the electrical fire monitoring system. In combination with the Internet of Things, real-time data monitored will be uploaded to the cloud platform in a timely and effective manner through new generation information technologies such as big data and cloud computing. The platform monitors, counts, analyzes and shares information on the collected data. This combined electrical fire monitoring detector mainly monitors residual current, over-current, temperature, voltage, arc, etc.
    IP30 Environmental Monitoring Sensor IOT LoRa Electric Fire Monitor ISO/IEC 9001
    Main parameters of the product
    Monitoring equipment
    Heartbeat cycleThe default is once every 10 minutes.
    Temperature test range0~150℃
    Residual current0~1000mA
    three-phase voltage100~500V
    three-phase current0~100A,3000:1 open close type transformer
    Detection channelTwo circuit residual current detection, three circuit temperature detection
    Communication mode
    Frequency bandCN470
    Uplink communication modeLoRa modulation
    Downlink communication modeMulti wire system
    Communication protocol
    LoRaWAN
    Input port
    Two residual currents/temperatures, three temperatures, one three-phase voltage channel and one three-phase current channel; 220V terminal blocks; 485 communication port.
    Output portSwitch output port
    Empty transport distance485 communication < 500m
    Physical environmentWorking voltage220V
    Power consumption< 3W
    Others
    Adjustment accuracy (temperature and current)1℃,1mA
    Alarm loudnessNot less than 70dB at 1m
    Working temperature(-10~60)℃
    Operating humidity(10~93)%RH
    Installation methodStandard guide rail type, screw fixed installation
    IP protection gradeIP30

      IP30 Environmental Monitoring Sensor IOT LoRa Electric Fire Monitor ISO/IEC 9001IP30 Environmental Monitoring Sensor IOT LoRa Electric Fire Monitor ISO/IEC 9001IP30 Environmental Monitoring Sensor IOT LoRa Electric Fire Monitor ISO/IEC 9001IP30 Environmental Monitoring Sensor IOT LoRa Electric Fire Monitor ISO/IEC 9001
