NBIoT Wireless Communication Module Built-in MCU with Automatic Edge Computing Capability

• Product Overview

NB-IoT smart meter communication module is embedded with high-performance, low-power, multi-band NB-IoT wireless communication module and low-power 32-bit microprocessor. As long as the use environment of smart electricity meters is within the coverage of NB-IoT communication network, it can realize the instant access of electricity meters to the management platform, receive and respond to the reading/control instructions issued by the platform. At the same time, it can effectively control the upload cycle and reporting tasks and other operating parameters within the communication module. Automatically acquire various data of the electricity meter and upload it to the cloud platform on a regular basis.

• Main functions and features

1. The communication module has the ability to automatically obtain the unique communication address information of the currently equipped smart meter after power-on. And realize binding with its own remote communication address;
2. LoRaWAN wireless remote mode can flexibly configure the operation parameters such as task list and upload cycle time required by the communication module to automatically execute the active upload task;
3. Professional interface data flow automatic control technology. Give priority to the instruction frame issued by the platform gateway. Complete real-time two-way transparent transmission;
4. The standard smart meter communication interface and module box design of the State Grid shall be adopted. It is suitable for most smart meters and can be replaced directly.

• Specifications and main technical parameters

• Appearance and antenna installation

Assembly diagram of single-phase smart electricity meter and NBIoT communication module (antenna built-in)

Assembly diagram of single-phase smart electricity meter and NBIoT communication module (antenna built-in)

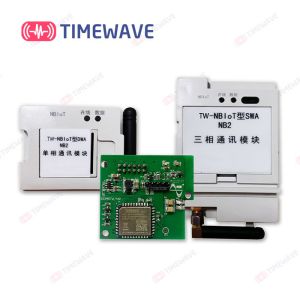

NBIoT smart meter communication module (external antenna)

Assembly diagram of single-phase smart electricity meter and NBIoT communication module (external antenna)

Assembly diagram of three-phase smart electricity meter and NBIoT communication module (external antenna)

• Cases

​

Wuhan Time Wave Network Technology Co., Ltd realizes the energy supervision service platform based on the LPWAN core technology.provide customers with one-stop overall solutions and metering terminal,system platform, project construction and system maintenance.

We developed the "TimeWave Cloud" energy regulatory platform. It is mainly used for metering, meter reading, charging, management and control of water, electricity and heat. It can realize and provide automatic meter reading and charging, carbon emission monitoring, safe power consumption, energy consumption analysis, energy saving analysis, distribution and transformation monitoring, dynamic environment monitoring of machine room, intelligent operation and maintenance and other subsystems. And independently developed and produced "TimeWave" Smart meter, intelligent water meter and communication terminal products.

The management of water and electricity meters through LoRaWan communication technology has reached the international advanced level and is in the leading position in China!
