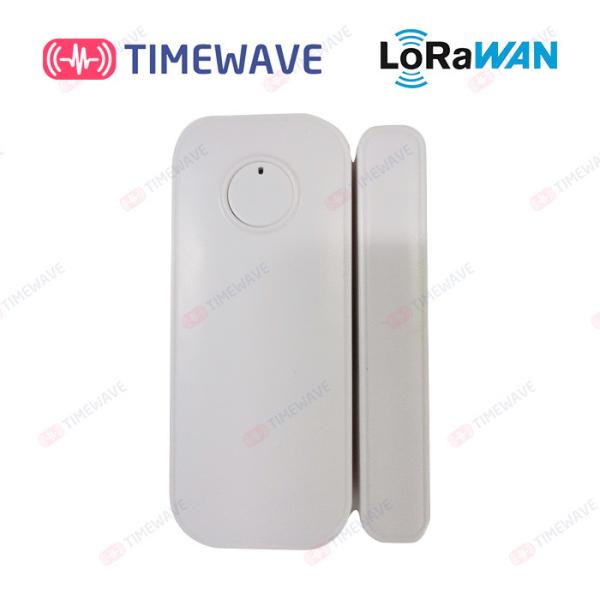

Remote Control Electronic Door Magnetic based on LoRa communication technology

• Product Overview

LoRa wireless door magnet is a wireless door magnet that adopts LoRa communication technology and supports LoRaWAN wireless communication standard. It can realize remote door opening alarm, door closing prompt, door and window forgetting to close reminder and other functions. Compared with WiFi and Bluetooth door magnets on the market, this door magnet has significant advantages in communication distance, standby time (power consumption) and networking capacity.

• Product features

1. Comply with LoRaWAN wireless communication standard, and the transmission distance can reach 1-2 km. Ultra low power consumption, sustainable use for 1 year.

2. It supports remote deployment and removal, and is easy to manage.

3. Replaceable battery design, simple maintenance.

4. The double-sided adhesive tape is applied to the doors and windows for convenient installation.

• Main parameters of the product

  Working temperature	-10℃~50℃
  Operating humidity	<95%
  Transmitting power	17dBm
  Transmission distance	5km(Depending on time and distance)
  Receiving sensitivity	-132 dBm @(SF=11,125KHz)
  Communication standard	LoRaWAN
  Encryption mode	AES128
  Power Supply	2 No. 7 AAA batteries (replaceable)
  Operating hours	1 year
  Indicator light	The flashing green indicator indicates that the normal operation information is reported. The flashing yellow indicator indicates that the alarm information is reported.
  Heartbeat interval	12h (the default value is configurable)
  Alarm interval	Emergency alarm (remind that doors and windows are not closed): 30s. General alarm (undervoltage, etc.): 2 h. The above are default values, which can be configured and adjusted.
  Multi function button	One click deployment and disarm.
  Size	95 * 54 * 20mm (including magnetic column)
