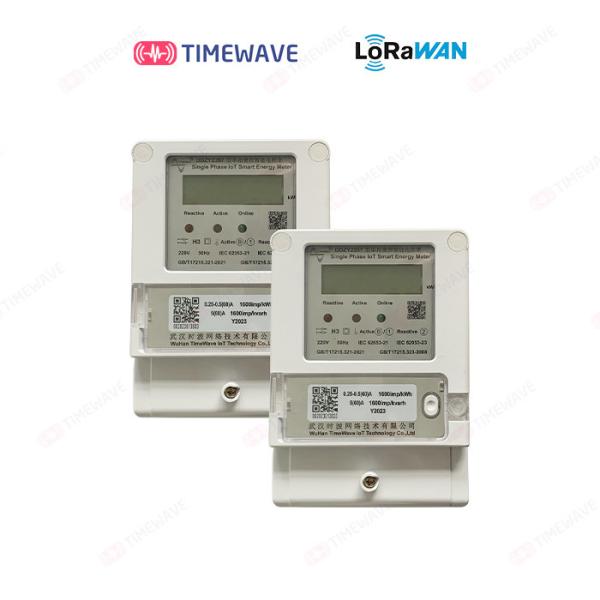

    Civil LoRaWAN Smart Electricity Meters 80A / 100A Multifunctional Energy Meter

    Ask Lasest Price
    Brand Name : TimeWave
    Model Number : Type DTZY2397
    Certification : ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001
    Price : EXW price US$ 60-150/ set
    Payment Terms : L/C, T/T
    Supply Ability : 2000 sets per week
    Delivery Time : 3-5 weeks after receive the payment
    • Product Details
    • Company Profile

    Civil LoRaWAN Smart Electricity Meters 80A / 100A Multifunctional Energy Meter

    LoRaWAN Three Phase Smart Energy Meter for Real-time Monitoring and Control of Electricity Consumption​


    • Product Overview
    DTZY2397 three-phase four wire charge control intelligent electric energy meter is a new generation of intelligent high-tech remote electric energy metering product. It is based on MCU+measurement chip technology. Large scale digital signal processing chip is adopted. It is designed and manufactured according to the relevant international (IEC) standards of electric energy meters and China's electric power standards. With LoRaWAN/CAT1/Bluetooth wireless communication modules, communication distance and networking problems are solved. It has the characteristics of high precision, low power consumption and good stability. An important part of the modernization of distribution management can be realized without complex cabling. It can be widely used in the measurement of three-phase AC power in cities, rural areas or factories and enterprises.
    • Highlights:

    1. Metering positive active, negative active and ABC split phase active electric energy function. It can measure, store and display the ABC voltage, current, total and three-phase active power, total and three phase power factor, frequency and other operating parameters and status of the current watt hour meter. It has overload protection function.
    2. Remote power off and transmission function: send power off command through RS485 and other communication interfaces to cut off the user's load circuit. Or send the power transmission command to connect the user load circuit.
    3. Active upload/two-way transparent transmission function: actively transmit data to the corresponding platform through LoRaWAN wireless network. The default interval is 4 hours (settable).

    • Specifications & technical parameters
    • Specifications & technical parameters
    QualificationThree-phase direct meterThree-phase CT meter
    StandardsIEC62053-21, DL/T645-2007
    Rated voltage3×220/380V3×220/380V
    Operating voltage range80%-115%80%-115%
    Rated flow limit Ib5A1.5A
    Maximum current: Imax100A6A
    Starting current0.4% Ib0.2% Ib
    Power consumptionNon communication state≤1.5W , In communication state≤3W
    Power grid frequency50Hz50Hz
    Frequency range±2%±2%
    Active measurement accuracyClass 1/BClass 0.5, S/C
    Reactive measurement accuracyClass 2Class 2
    Active pulse constant400(imp/kWh)3200(imp/kWh)
    Reactive pulse constant400(imp/kWh)3200(imp/kWh)
    Clock precision±0.5S/d(23℃)±0.5S/d(23℃)
    Normal operating temperature range-40° C ~ +70° C-40° C ~ +70° C
    Extreme operating temperature range-40° C ~ +70° C-40° C ~ +70° C
    Transportation and storage temperature range-40° C ~ +70° C-40° C ~ +70° C
    Power dissipation<1.5W ,10VA<1.5W ,10VA
    The time that the blackout clock preserves>24h>24h
    The RS485 Interface

    The Default is 2400bps.

    1200bps,2400bps,4800bps and 9600bps were available

    LoRaWAN frequency

    CN470,RU864,IN865,EU868,US/AU915,KR920,AS923_1/2/3/4,

    Custom Channels


    • TRANSPORTATION AND STORAGE

    Ammeters must be transported and stored under original packaging conditions. Products shall not be severely impacted during transportation and unpacking, and are transported and stored in accordance with GB / T15464-1995 General Technical Conditions for Instrument Packaging. The products should be stored in the warehouse and placed on the platform frame. The stacking height shall not exceed five layers. No corrosive gases shall be present in the stored environment.


    • WARRANTY PERIOD AND AFTER-SALES SERVICE

    If the user complies with the transportation, storage and installation operation specifications, and the lead seal of the manufacturer is still complete.If there is a quality problem, our company is responsible for free repair or replacement within 18 months from the date of delivery the electricity meter.
    During the whole life cycle of the products, our company implements "three guarantees" for all electricity meter products, providing necessary maintenance and services. Providing equipment wiring diagram and necessary technical documents and drawings. According to the requirements of users, provide necessary training for maintenance personnel and operators. Providing training materials, and update the software regularly and provide free upgrade.
    After receiving the service request of the product user, our company will respond within 12 hours.
