Single Phase RS485/LoRaWAN/CAT.1 Modbus DIN Rail Smart Prepaid Digital Energy Meter

• Product Selection Table

​

• Product Overview

​DDZY2397 single-phase fee controlled smart energy meter (single-phase IoT energy meter (din rail) is a full-digital intelligent energy meter developed by our company. It adopts a SOC highly integrated chip. In addition to the active energy metering function, it also has multiple functions such as online power display, intelligent anti-theft electricity, overload control, and remote centralized meter reading. The data

• Functions and features

​1. Measuring positive and negative active energy. It can measure, store, and display the operating parameters and status of the current electric energy meter such as voltage, current, power, power factor, frequency, etc. With overload protection function;

2. Remote power off and power transmission function: send a command of power off through RS485/LoRaWAN/Cat.1(4G) and other communication methods to cut off the user load circuit. Or send a command of power transmission to connect the user load circuit;

3. Active upload/two-way transparent transmission function: actively upload data to the corresponding platform through the LoRaWAN/Cat.1 (4G) wireless network, the default interval is 4 hours (settable);

4. The communication protocol conforms to DL/T645-2007 "Communication Protocol for Multi-function Electric Energy Meter";

• Specifications & technical parameters​

Standards	IEC62053-21, DL/T645-2007
Rated voltage (Un)	220V
Operating voltage range	80% ～120%(rated voltage)
Rated current limit (Ib)	5A
Maximum current (Imax)	60A
Active measurement accuracy	Class 2/A,Class 1/B
Grid frequency	50Hz/60Hz
Active pulse constant	1200(imp/kWh)
Power consumption	＜1.0W
Starting current	≤0.004Ib
LoRaWAN frequency	CN470,RU864,IN865,EU868,US/AU915,KR920,AS923_1/2/3/4, Custom Channels
Dimension	89mm×76mm×75mm
Operating life	＞10 years
Normal operating range	-10℃～ +45℃；
Extreme operating range	-25℃～ +55℃；
Transportation & storage range	-40℃～ +70℃
Relative humidity	Generally not greater than 85% RH. Within 30 days of a year(naturally distributed), sometimes reaching 95% RH.

• Display Description​

After powering on, the LCD screen will fully display for 3 seconds. Then display the current active electrical energy and current active power alternately.

• Wiring diagram

​​​​

The main terminal wiring is shown in the left figure,

【1】Phase Line In

【2】Phase Line Out

【3】Zero Line In

【4】Zero Line Out.

There are 4 auxiliary terminals on the opposite side of the main terminal of the electric energy meter,

⑥⑤is metering pulse output

③④is 485 communication.

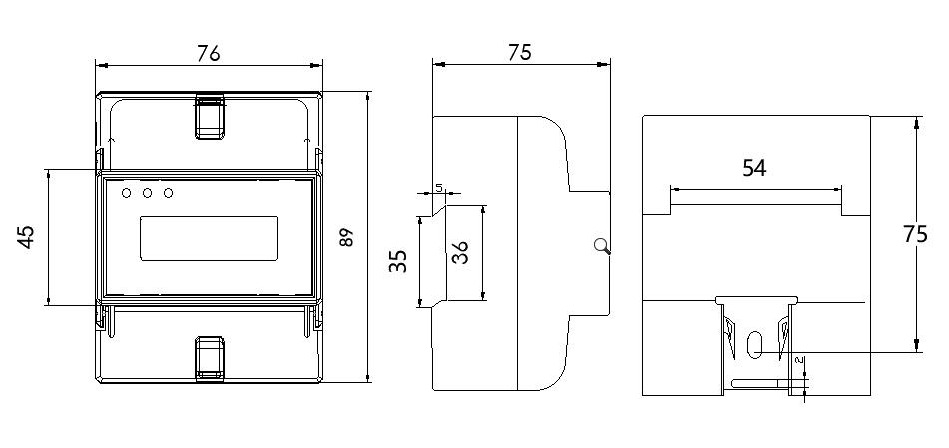

• Overall dimension (unit: mm)

​
